MXK10 Kawasaki Ninja ZX-10R Plug & Play Dash Logger
Descriere
In the Box
MXK10 dash logger with screws and washers, 50 cm dedicated GPS Module with anodized plate fixing kit and screws.
The AiM MXK10 is a plug & play dash display and data logger specific to Kawasaki Ninja ZX-10R Generation 4 and 5. The dash is completely compatible with the original wiring and comes with a mounting bracket for hassle-free fitment. It is available in two generations: Gen 4 (2011-2015) and Gen 5 (2016-2020) compatible with the respective Kawasaki Ninja ZX-10R models.
Key Features :
| High contrast 5" TFT display | Fully Plug & Play |
| Two CAN connections | 10 shift light LEDs |
| 6 status RGB LEDs | GPS Module included |
| Wi-Fi connection | Mounting bracket |
MXK10 Kawasaki Ninja ZX-10R Plug & Play Dash Logger
The AiM MXK10 is a full plug & play dash logger. It is completely compatible with the original connector and bracket fixings points on your bike.
The Kawasaki Ninja MX10 is the perfect tool for track day bikes as it allows you to monitor and record the parameters of your bikes performance. The data can be used to highlight faults or to see where improvements can be made from the bikes setup or riders lines or braking points.
- Specific to Kawasaki Ninja ZX-10R bikes 2011-2015 (Gen 4) or 2016-2020 (Gen 5)
- Easy plug & play installation
- 4 GB data recording with USB or Wi-Fi connectivity for downloading data
- Adjust bike parameters such as ECU maps, traction control, suspension settings, anti-wheelie and ABS
- GPS lap timing with built-in track recognition
- Records all data from the bikes ECU
- Expansion port allows additional sensors or AiM SmartyCam HD/GP HD camera to be added.
Please Note: The MXK10 dash can be programmed with your current mileage. Please state what you want the mileage to be and if this is in miles or kilometres in the note section on your order.

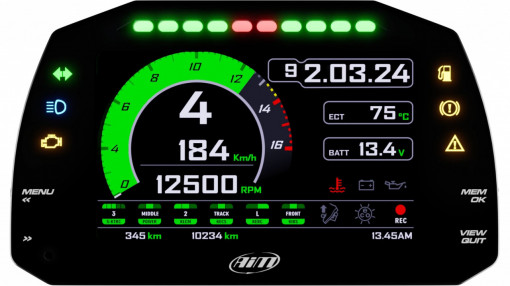

Display
The MXK10 features a high contrast 5" display, allowing you to read your data on a crystal clear screen whatever the conditions. The dash has been designed to be lightweight and with added aluminium body parts it gives an awesome look.
The display is fully configurable and can show all the data you want to see. RPM, shift lights, high beams, direction arrows, engine problems, ABS, fuel flow level and alarms like water temperature, battery and oil pressure.
Lap Timing & Data Logging
The MXK10 display is user-configurable and shows all the information you want to see. The dash is supplied with a GPS Module with a 50cm cable which provides accurate GPS lap timing and track mapping. With inbuilt track recognition software. When you switch your bike on near a track recorded in the database the GPS Module automatically recognises it, loads the start/finish coordinates and calculates lap times when those coordinates are crossed. If the tracks not on the database you can create and load them onto the database using Race Studio 3 software.
The MXK10 features two working modes: road and track. In track mode, the lap pushbutton can be disabled to avoid confusion between GPS signal and lap button, while in Road mode lap button is always enabled and GPS Module is always disabled.
Expand Your System
These are only some of the items that can be added to our MXK10 for incrementing the performance and the data acquired.
Configure & Analyse with Race Studio 3
Configuration
With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
Analysis
With Race Studio 3 you can also analyse all data recorded by MXK10 GEN5 and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
Technical
- Display: 5" TFT LCD
- Resolution: 800x480 pixels
- Contrast: 600:1
- Brightness: 700cd/m2 - 1,100 Lumen
- Ambient Light Sensor: Yes
- Status information LEDs: 6
- Shift Lights LEDs: 10
- CAN connections: 2
- ECU connection: Yes
- External Modules: GPS Module, Channel Expansion, Lambda Controller, SmartyCam HD
- Wi-Fi connection: Yes
- Internal memory: 4 GB
- Body: 1 JAE connector & 2 Binder connectors
- Dimensions: 166 x 97 x 23mm
- Weight: 530g
- Power consumption: 400 mA
- Waterproof: IP65
