AiM RPM Car Coil Adapter For EVO4 - ARP04

AiM RPM Car Coil Adapter For EVO4 - ARP04

Name: AiM RPM Car Coil Adapter For EVO4 - ARP04
Brand: AIM
SKU: X50AARP040
Price: 102.34 EUR
Availability: InStock

86⁰⁰ EUR (fara TVA)

102³⁴ EUR (TVA inclus)

TVA inclus; Costurile de livrare nu sunt incluse. Preturile pot varia in functie de furnizor. Pretul final este afisat pe proforma sau ne puteti contacta.

Disponibil in 7-10 zile de la comanda

Comenzi telefonice - 07217224640721722464

Cod produs - SKU: X50AARP040

Descriere

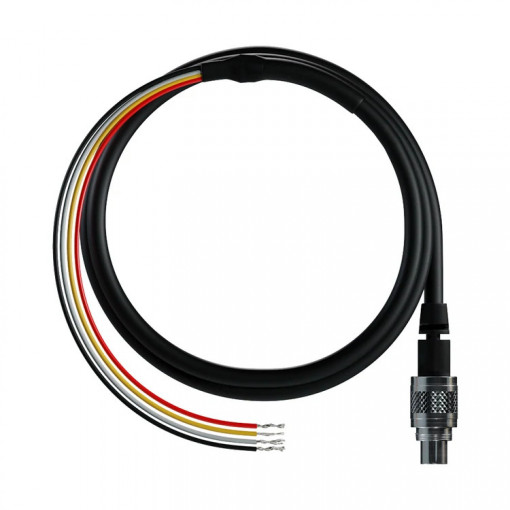

AiM RPM Car Coil Adapter For EVO4 - ARP04

This AiM adapter has been designed to supply RPM signals to an AiM EVO4 data logger on vehicles without an ECU.

Key Features :

Suitable for EVO4 logger	For older vehicles
Filters & converts signal

AiM RPM Car Coil Adapter For EVO4 - ARP04

This AiM adapter has been designed to supply RPM signals to an AiM EVO4 data logger on vehicles without an ECU. It connects to the coil and filters the signal, reducing noise and generating the correct square compatible with the EVO4 logger.

Connecting The RPM Coil Adapter

Connect the cable that ends with a five-pin binder 712 male connectors to RPM input of EVO4
Connect the black cable labelled GND to vehicle reference ground
Connect the red cable labelled 9-15 VDC to a switched 12V power supply
Connect the white cable labelled RPM 150-450V to the coil earth trigger
The yellow cable labelled DIGIT OUT is EVO4 digital output
