In the Box
Power Distribution Module PDM08, 35 pins AMP connector, Heavy Duty Amphenol (Surlock) connector, Rosenberger LVDS connector (optional), USB cable, CAN Exp female Binder cable 1.5 m, 35x Gold plated pin for AMP.

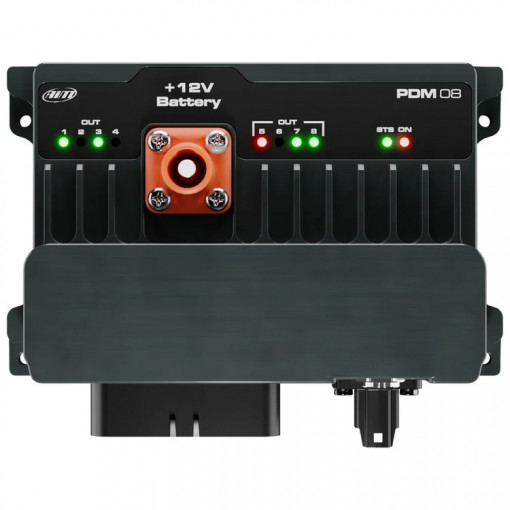

The AiM PDM08 is a 8 channel advanced power distribution module designed to power a multitude of vehicle circuits, removing the need for traditional fuse boxes and relays.
Key Features :
|8 RGB LEDs||Six analogue digital inputs|
|Two-speed inputs||Power outputs|
|Data logging facility|
Power Distribution Module
The AiM PDM08 is a 8 channel advanced power distribution module designed to power a multitude of vehicle circuits, removing the need for traditional fuse boxes and relays. It allows for a simplified wiring harness with increased reliability and control functions.
The PDM08 is available on its own or with a choice of 6" or 10" dash displays. It can receive data from the vehicle ECU and even includes a data logger and optional GPS module for lap timing and track mapping.
PDM08 Power Outputs
The PDM8 features eight high sided outputs: 1 x with series diode rated up to 20A, 1 x rated up to 25A, 6 x rated up to 15A. Total continuous max current 100A.
Each of the outputs provides feedback to the data logger to provide vital information such as open circuits, short circuits, high/low voltage, the number of fault retires, and the time between the reties is user-definable.
All outputs can be configured as PWM's for a soft start/stop. All of the PDM circuits can be set up and monitored via the Race Studio 3 software.
The PDM08 features 6 x analogue/digital inputs, and 2 x speed inputs.
PDM08 Data Management
The PDM08 can receive and record data from the following sources, ECU - Over 1000 protocols available. Digital/analogue inputs. Internal nine-axis EMU. GPS - Lap time and position.
Expansion modules. Push buttons - From RIO02 (Remote Input Output module) or any commercial CAN keypad. PDM outputs - Currents and status of each channel individually. Other user-defined math channels.
Dash Display Options
Suitable for replacing all of the dashboard gauges and warning lamps, these TFT dash displays are available in 6" or 10" versions and with "Race" or "Road" icons. Both versions have full user-configurable displays and offer a range of layouts.
The GPS09 module option provides easy lap timing and lap position for track mapping. The PDM has over 4000 race tracks in the database, so once you arrive at the track, the system already knows the timing points so that you can get on with the driving.
The GPS09 module is available with various lead lengths to suit different applications and with cable entry from underneath (roof version) or the side.
Optional Wiring Solutions
A pre-assembled harness is available for a more straightforward wiring solution, colour-coded and tagged to provide the easiest installations. Available in the Accessories Tab.
Expand Your System
Add extra devices to your system to give extra data and improve your racing performance.
Configure & Analyse with Race Studio 3
With Race Studio 3, you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
With Race Studio 3, you can also analyse all data recorded by MXL2 and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.
- LEDs: 8 RGB LEDs + 1 PDM ON + 1 PDM STS (Status)
- Six fully configurable, max 500 Hz each
- Pullup + 12V, + 5V, analog/digital
- Speed In: 2
- Power Outputs:
- 1 with serie diode rated up to 20 A
- 1 rated up to 25 A
- 6 rated up to 15 A
- Protected for:
- Over Voltage, Under Voltage, Over Current, Over Temperature
- All inputs have an internal freewheeling diode
- Total max current: 100 A
- Lin Bus: 1
- CAN Connections: 3
- Internal Platform: 3 axis ±5G accelerometer + 3axis gyro + 3 axis magnetometer
- Internal Moemery: 4 GB
- External Modules: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Formula Steering Wheel, Remote I/O pushbutton module
- External Analog Camera input: NO
- Connectors: 1 AMP connector + 1 Amphenol Surlok connector + 1 Rosenberger connector
- Remote display connection: 1 AiM stream output
- Body: Anodized Aluminium
- Dimensions: 161 x 100.6 x 50.6mm
- Weight: 500 g
- Waterproof: IP65
