In the Box
Power Distribution Module PDM32, GPS Module, 35 pins free Black AMP connector, 35 pins free Gray AMP connector, Heavy Duty Amphenol (Surlock) connector, Rosenberger LVDS connector, USB cable, CAN Exp female Binder cable 1.5 m, 70x Gold plated pin for AMP.

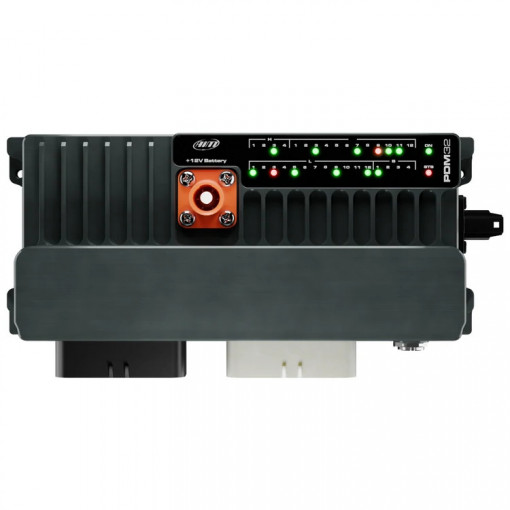

AiM PDM32 With GPS Data Logging Kit
The AiM PDM32 is a 32 channel advanced power distribution module designed to power a multitude of vehicle circuits, removing the need for traditional fuse boxes and relays. The GPS Module providing easy lap timing and lap position for track mapping.
Key Features :
|32 RGB LEDs||Eight analogue digital inputs|
|GPS lap timing (optional)||Four digital inputs|
|Data logging facility||Two-speed inputs|
|28 High side outputs||4 Half-bridge outputs|
Power Distribution Module
The AiM PDM32 is a 32 channel advanced power distribution module designed to power a multitude of vehicle circuits, removing the need for traditional fuse boxes and relays. It allows for a simplified wiring harness with increased reliability and control functions.
The PDM32 can receive data from the vehicle ECU and even includes a data logger and GPS Module for lap timing and track mapping. The GPS Module is available with cables from 50cm up to 4m. There is also a GPS roof version available in 2m or 4m.
PDM32 Power Outputs
The PDM32 features 28 high sided outputs and four half-bridge outputs: 4 x rated up to 20A (high power), 12 x rated up to 15A (mid-power), 12 x rated up to 10A (low power), 4 x rated up to 35A (half-bridge). Total continuous max current 120A.
Each output provides feedback to the data logger to provide vital information such as open circuits, short circuits, high/low voltage, the number of fault retires, and the time between the reties is user-definable.
All outputs can be configured as PWM's for a soft start/stop. All of the PDM circuits can be set up and monitored via the Race Studio 3 software.
The PDM32 features 8 x analogue/digital inputs, 4 x digital-only inputs and 2 x speed inputs.
PDM32 Data Management
The PDM32 can receive and record data from the following sources, ECU - Over 1000 protocols available. Digital/analogue inputs. Internal nine-axis EMU. GPS - Lap time and position.
Expansion modules. Push buttons - From RIO02 (Remote Input Output module) or any commercial CAN keypad. PDM outputs - Currents and status of each channel individually. Other user-defined math channels.
GPS Options available with this kit
The GPS09 module option provides easy lap timing and lap position for track mapping. The PDM has over 4000 race tracks in the database, so once you arrive at the track, the system already knows the timing points so that you can get on with the driving.
The GPS09 module is available with various lead lengths to suit different applications and with cable entry from underneath (roof version) or the side. With a 5 pin binder connection.
Optional Wiring Solutions:
A pre-assembled harness is available for a more straightforward wiring solution, colour-coded and tagged to provide the easiest installations. Available in the Accessories Tab.
Expand Your System
Add extra devices to your system to give extra data and improve your racing performance.
Configure & Analyse with Race Studio 3
With Race Studio 3, you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
With Race Studio 3, you can also analyse all data recorded by MXL2 and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.
- 14 Fully Configurable, max 500 Hz each:
- 8 analogue/digital
- 4 digital inputs
- 2-speed input
- Power Outputs:
- 4 rated up to 20 A (high power)
- 12 rated up to 15 A (mild power)
- 12 rated up to 10 A (low bridge)
- 4 rated up to 35 A (half-bridge)
- Protected for: over voltage, under voltage, over current, over temperature
- Total max current: 120 A
- LEDs: 32 RGB LEDs + 1 PDM ON + 1 PDM STS (Status)
- Lin Bus: 1
- CAN Connections: 3
- Internal platform: 3 axis ±5G accelerometer + 3 axis gyro + 3 axis magnetometer
- Remote Display Connection: 1 AiM stream output
- Connectors: 2 AMP connectors + 2 Binder connectors + 1 Amphenol Surlok connector + 1 Rosenberger connector
- Internal memory: 4 GB
- External modules: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Formula Steering Wheel, Remote I/O Pushbutton Module
- External Analogue Camera input: 2
- Body: Anodised Aluminium
- Waterproof: IP65
- Dimensions: 234.5 x 94.6 x 49.5mm
- Weight: 761g
- GPS Module:
- 5 Pin Binder connection
- Dimensions: 64.8 x 53.2 x 19.7mm
- Weight: 60.5g
