In the Box
LCU-One CAN - Wide band Bosch 4.9 Lambda Probe - Thread iron ring for probe installation - 90 cm CAN connection - Race Studio 2 software

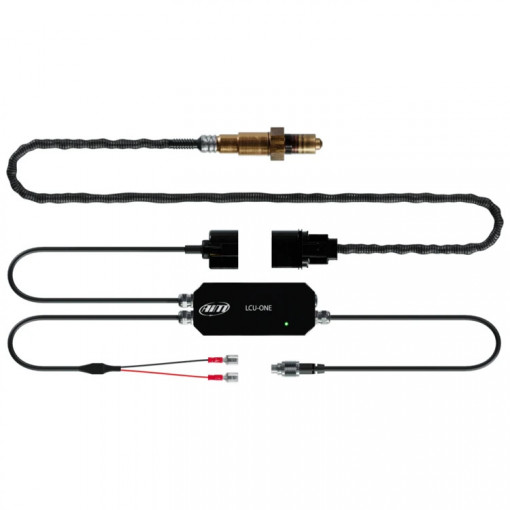

AiM LCU One CAN Lambda Controller
The AIM LCU-ONE Lambda Controller monitors air/fuel ratios. Connected to a MyChron 5 S or MyChron5 S 2T or logger (EVO4S, EVO5), The LCU-One will perfectly tune the carburetion of your engine and maintain it at peak performance.
Key Features :
|Full control of your engine||Monitor air/fuel ratios|
|All data at your fingertips||Supplied with wideband Bosch LSC 4.9 probe|
AiM LCU One CAN Lambda Controller
The AiM LCU-One CAN lambda controller unit works exclusively with the Bosch LSU 4.9 wideband probes. It is the quickest and most accurate way to analyse exhaust gases and provide an LCU-One CAN to communicate with MyChron5 via CAN.
It provides lambda value, Air/Fuel ratio, probe temperature and diagnostics parameters. An external 12V battery is required and will supply power to the whole AiM system, including MyChron5 and any other AiM expansion connected to it.
LCU-One CAN is the only AiM Lambda Controller compatible with MyChron5 real-time parameters related to engine carburetion.
You can fit lambda probes to 2 and 4 strokes engines, gasoline, diesel, methane or alcohol-based fuels.
This air-fuel ratio information that the CAN Lambda provides is essential for a tuner. The fuel input, power output and air-fuel ratio present in the exhaust form the basis of all fuel tuning. An engine with too much oxygen present in the exhaust is titled 'lean' and will shorten the engine's life.
Alternatively, low oxygen readings in the exhaust may represent a rich engine receiving more fuel than it needs. Seeing these figures while tuning a kart allows the tuner to make fueling adjustments on the fly and determine the optimal lambda figure.
Full Control of your Engine
The LCU-One can detect lambda values from 0.65 to 1.6 (a value lower than one means a rich mixture, while a value higher than one means a lean variety), offering you an exact measurement.
LCU-One points out possible oxygen excess/lack in the carburetion by analysing the remaining oxygen, providing essential information for four strokes engines and two-stroke engines.
Configurability of Stoichiometric ratio allows LCU-One use on petrol-powered engines and diesel or alternative fuel (biofuel, ethanol).
Bosch LSU 4.9 Probe
The Bosch sensor measures the proportion of oxygen in exhaust gases of automotive engines (gasoline or Diesel).
The wideband lambda sensor LSU 4.9 is a planar ZrO2 dual cell limiting current sensor with an integrated heater. Its monotonic output signal in the range of lambda 0.65 to air makes the LSU 4.9 capable of being used as a universal sensor for lambda one measurement and other lambda ranges.
The connector module contains a trimming resistor, which defines the characteristic of the sensor.
The main benefit of the LSU 4.9 is the robust design combined with the high Bosch production quality standard.
Using CAN bus connection, the LCU-One is easy to install, whilst you can add multiple units for better engine control (one probe for each engine bank or even one probe for each engine cylinder).
The LCU-One CAN use a Can bus and is easy to install; it configures Stoichiometric point and provides Lambda value and air / dual ratio and Lambda probe temperature and diagnosis.
The LCU-One Analogue uses a serial line for programming and an analogue output proportional to lambda value. LCU-One CAN & LCU-One Analog switch on/off together with the logger to be even more user-friendly. It provides Lambda value and air/fuel ratio, and thanks to the dedicated Lambda configurator software.
LCU-One Analog allows you to configure:
Analogue output (0-5 Volt)
Expand Your System
The above image shows how you can put a system together to increase your data performance.
Configure & Analyse with Race Studio 3
With Race Studio 3, you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
With Race Studio 3, you can also analyse all data recorded by MXL2 and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
