AiM Hall Speed Pick Up Sensor 712/719 Plug

AiM Hall Speed Pick Up Sensor 712/719 Plug

Name: AiM Hall Speed Pick Up Sensor 712/719 Plug
Brand: AIM
SKU: X05SNVDW
Price: 119 EUR
Availability: InStock

100⁰⁰ EUR (fara TVA)

119⁰⁰ EUR (TVA inclus)

TVA inclus; Costurile de livrare nu sunt incluse. Preturile pot varia in functie de furnizor. Pretul final este afisat pe proforma sau ne puteti contacta.

Disponibil in 7-10 zile de la comanda

Comenzi telefonice - 07217224640721722464

Cod produs - SKU: X05SNVDW

Descriere

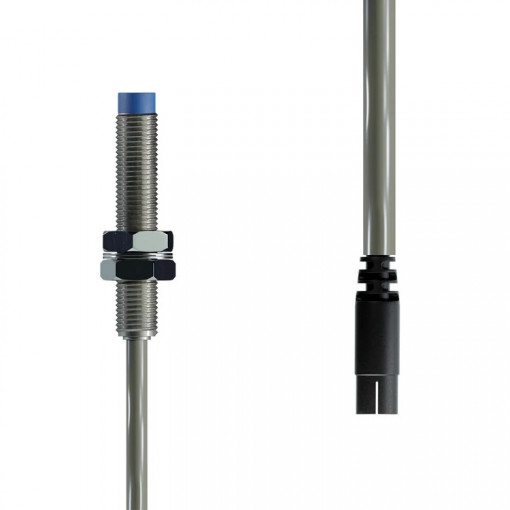

AiM Hall Speed Pick Up Sensor

The AiM non-contact sensor needs a metallic trigger to pass in front of it. It comes with a magnet and locknuts.

Key Features :

Hall effect wheel speed sensor	719 or 712 plastic connector
1.7m cable	M8 thread

AiM Hall Speed Pick Up Sensor

The output varies when it meets a magnetic field. The three-wire sensor produces a digital signal.

The sensor consists of a thin piece of metal that passes a continuous current through it. When the sensor is placed in a magnetic field the electrons move to one side of the metal and protons move to the other side of the plate. You will then be able to get a voltage.

The Hall Effect Sensor is a non-contact device that needs a metallic trigger to pass in front of it. Again, a bracket will usually need to be fabricated to mount the sensor in a suitable position. Please ensure that the distance between the sensor and trigger is in a 0.5 – 2.0 mm (0.007-0.07 inches) range.

The sensor only produces around Severn volts. When the electrons move to one side a potential difference is produced between the two sides of metal.
